【All Metal Cabinet Hardware Template】10-inch(H) * 16-inch(W), The level bar is made of hardened stainless steel. The vertical bar and other parts are made of aluminum alloy.
【Multi-purpose Hardware Installing Template】For precise mounting of pull/knobs/handles at even height on doors/drawers/cabinets. Default 3 drilling guide hole size is 5mm. Coming with a second size 4.2mm *3 guide hole.
【Accurate & Friendly to DIYer】Easy to assemble, to find right spots for knob/handle/pull high efficiently & accurately. 2 metal rulers can be perpendicular perfectly, built-in 2 scales, inch & metric.
【Portable & Great Longevity】 A must-have cabinet installation tool for professional use. This punch locator drill guide is including enough fittings about this fixture for a lifetime using.
【Package Detail】1 Cabinet hardware template+ 2 drill bits( 5mm & 4mm)+1 extra set of fittings(10 small pieces) to extend service life+1 instruction+1 zippered bag to storage. More details☟☟
Using this fixture can help you find the right spot quickly and precisely when drilling holes on doors, cabinets, drawers, and other woodworking appliances.
Specifications:
1*Cabinet hardware template (Level Ruler Length: 16inch/40cm, Vertical Ruler Length: 10inch/25cm )
1*Extra Set of Fittings: 10 Accessaries in total: 2*L screwdrivers 3*screws to drill guide 3*drilling guide hole screws(4.2mm) 2 thumbscrews
You can easily change the drill guide hole size from 5m to 4.2mm by unscrewing them with one L screwdriver.
2-Size Drilling bit: 5mm & 4mm
1*Durable zipped bag, only taking little space in your tools box, easy to organizing.
1*Instruction guide card

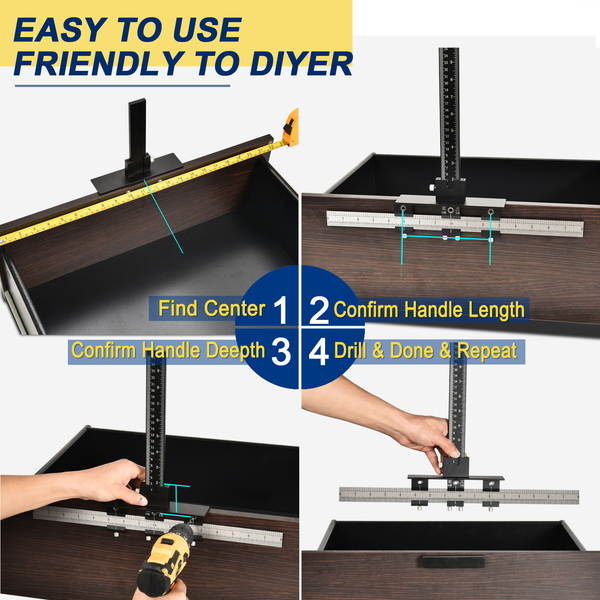

Using Instruction
Step1. Assemble jig firstly, screw but not tighten until finishing step 2
Step2.find 3-distance properly:
>> between the large-stop and hardware
>> between sliding end stop and hardware
>> between 2 drilling guide hole
Step3. Tighten slide parts by screw thumbscrews, then drill.
